ELABO-HID-DV-6500
Instrument Lighting
It is the operation lamp using either 35W or 50W HID Lamp that is about 3 to 5 times brighter than of the existing halogen lamps.
It is possible to have the beam investigation at a distance of 100m-1km depending on the beam patterns.
Specification
| Lamp type | Xenon HID Lamp | Lamp power | 35W/50W |
|---|---|---|---|
| Lamp life | 2,000Hrs over | Maximum luminous flux (brightness) | 3,200lm(35W)/4,500lm(50W) |
| Color temperature | 4,300K | Input voltage | DC 9V-32V |
| Current Consumption (ON) | 8.1A(12V-50W)/4.0A(24V-50W) | Current Consumption | 4.2A(12V-50w)/2.1A(24V-50W) |

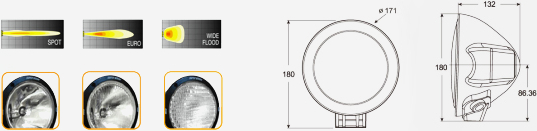

| Maximum irradiation distance | 1km (SPOT TYPE) | Body size (mm) | 171 x 132 x 180 |
| Weight (kg) | 2.14kg | ||
SP Tech's HID system is for blackening test of display panel.
Our HID System is for testing the blackening of a display panel, ELABO-HID Lamp has the color temperature of 65000K, which is similar with of the sun (5500-6500K).
This allows to measure the features varied by duration of exposure to light.
